Product Information:

Standing Seam Roof Air Terminals and Bases are used with Standing Seam Type Roofing Sheets. They are suitable for use with 8mm diameter aluminium conductors.

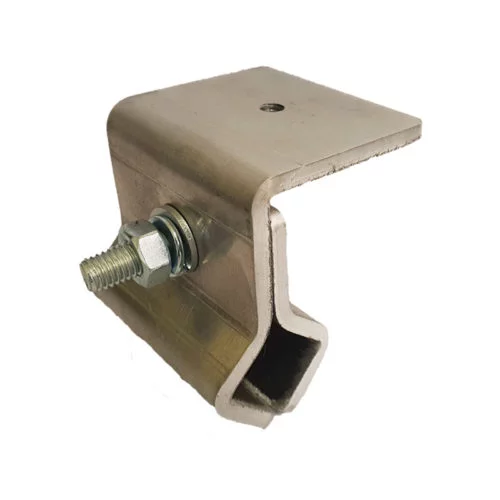

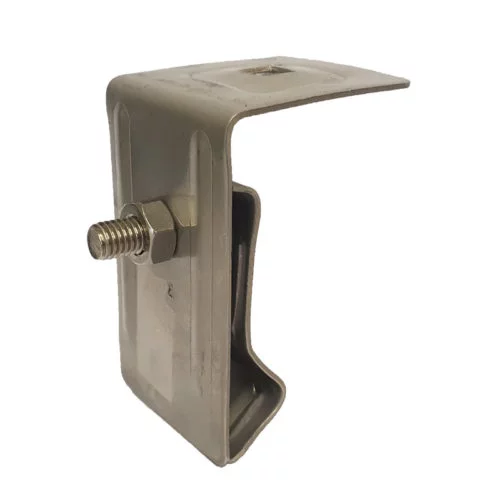

The connection is by means of a clamp on the mast leg (shown in picture).

Features:

Material: Aluminium Air Terminal/Zinc Plated Steel Base

More Information:

Can be used in the installation of a Conventional Air Termination Network.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

ROD LENGTH (A) (mm)
ROD DIAMETER (mm)
CONDUCTOR DIA + MATERIAL
WEIGHT (kg)
PART NO.
1000
12
8mm Aluminium
0.23
KM97121009
2000
12
8mm Aluminium
0.08
KM97122009
