Standard Earth Bars

Standard Earth Bars

SKU: EBARxx Categories: ,
Download PDF

SKU: EBARxx Categories: ,

Product Information:

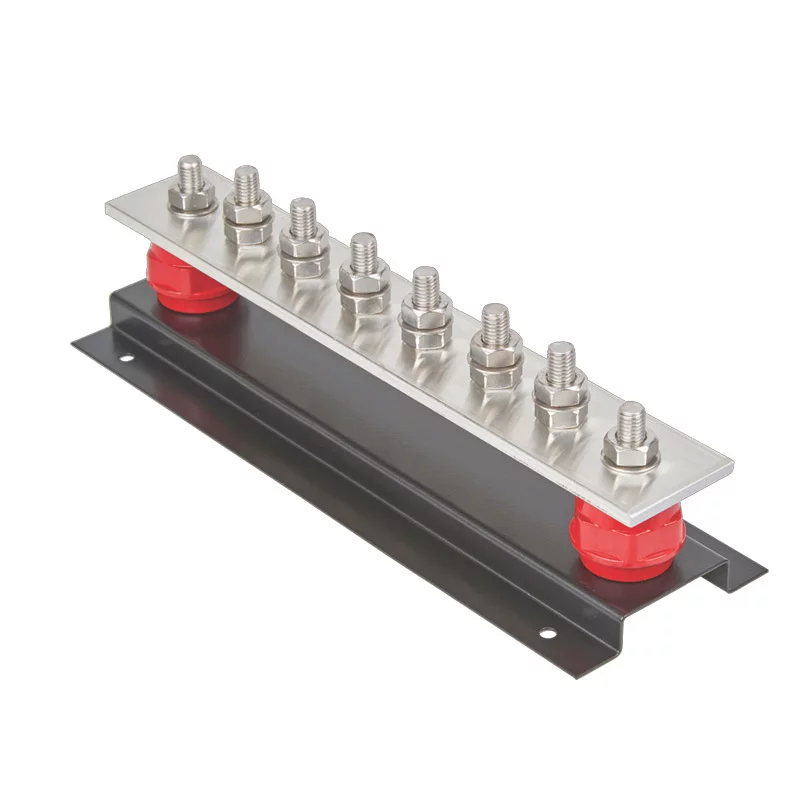

Standard Earth Bars are an efficient and convenient way of providing a common earth point. Standard Earth Bars are supplied with a powder-coated base as standard. The standard connections are M10.

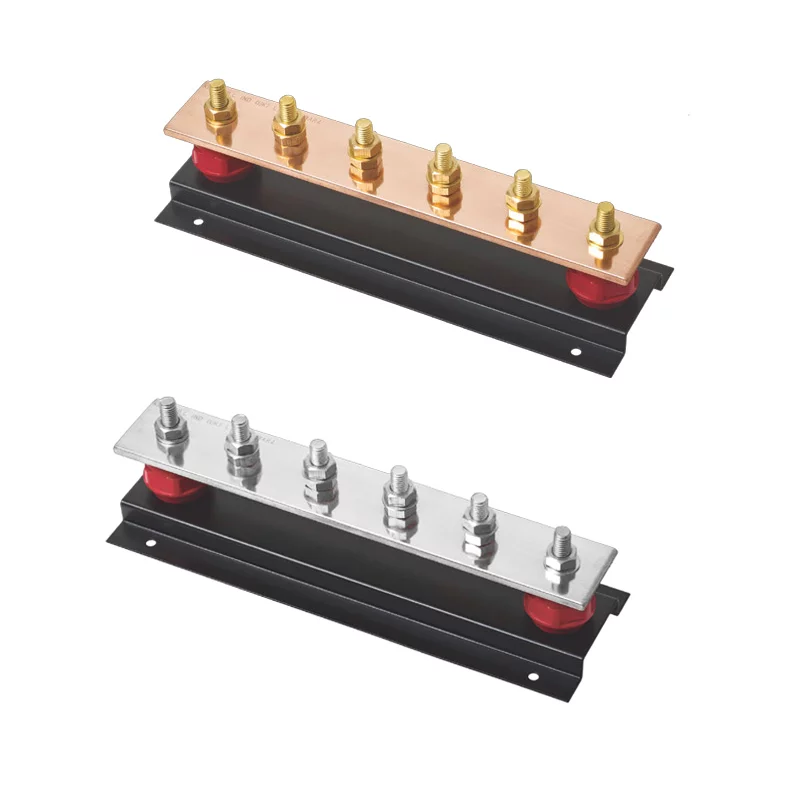

Available in copper and tinned copper.

Brass bolts are provided as standard for plain copper bars. Stainless steel bolts are provided as standard for tinned copper bars.

For phosphor bronze add /PB suffix to the part numbers above.
Other sizes are available on request.

Features:

Material: Copper or tinned copper (bar), Powder-coated steel (base)
Standard: BS 7430

More Information:

Standard Earth Bars meet the requirements of most applications. However, we can design and manufacture an Earth Bar to suit special applications. Send your specification to us and we will design a bespoke Earth Bar. This design is checked and confirmed by you before work commences.

Our standard Earth Bar Bases feature pre-drilled fixing holes for ease of installation and can be supplied powder-coated to reduce the risk of corrosion. All Earth Bars are manufactured in our dedicated UK factory with a high level of quality control that ensures consistency.

Standard Earth Bars:

DESCRIPTION
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
4 Way Earth Bar
300 x 100 x 90
1.60
EBAR4
6 Way Earth Bar
300 x 100 x 90
1.69
EBAR6
8 Way Earth Bar
450 x 100 x 90
2.34
EBAR8
10 Way Earth Bar
450 x 100 x 90
2.42
EBAR10
12 Way Earth Bar
520 x 100 x 90
2.82
EBAR12
14 Way Earth Bar
650 x 100 x 90
3.59
EBAR14
16 Way Earth Bar
800 x 100 x 90
4.16
EBAR16
18 Way Earth Bar
800 x 100 x 90
4.31
EBAR18
20 Way Earth Bar
900 x 100 x 90
4.71
EBAR20
22 Way Earth Bar
900 x 100 x 90
4.82
EBAR22
24 Way Earth Bar
1050 x 100 x 90
5.49
EBAR24
26 Way Earth Bar
1050 x 100 x 90
5.59
EBAR26
28 Way Earth Bar
1250 x 100 x 90
6.48
EBAR28
30 Way Earth Bar
1250 x 100 x 90
6.65
EBAR30

Standard Tinned Earth Bars:

DESCRIPTION
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
4 Way Tinned Earth Bar
300 x 100 x 90
1.60
EBAR4-T
6 Way Tinned Earth Bar
300 x 100 x 90
1.69
EBAR6-T
8 Way Tinned Earth Bar
450 x 100 x 90
2.34
EBAR8-T
10 Way Tinned Earth Bar
450 x 100 x 90
2.42
EBAR10-T
12 Way Tinned Earth Bar
520 x 100 x 90
2.82
EBAR12-T
14 Way Tinned Earth Bar
650 x 100 x 90
3.59
EBAR14-T
16 Way Tinned Earth Bar
800 x 100 x 90
4.16
EBAR16-T
18 Way Tinned Earth Bar
800 x 100 x 90
4.31
EBAR18-T
20 Way Tinned Earth Bar
900 x 100 x 90
4.71
EBAR20-T
22 Way Tinned Earth Bar
900 x 100 x 90
4.82
EBAR22-T
24 Way Tinned Earth Bar
1050 x 100 x 90
5.49
EBAR24-T
26 Way Tinned Earth Bar
1050 x 100 x 90
5.59
EBAR26-T
28 Way Tinned Earth Bar
1250 x 100 x 90
6.48
EBAR28-T
30 Way Tinned Earth Bar
1250 x 100 x 90
6.48
EBAR30-T

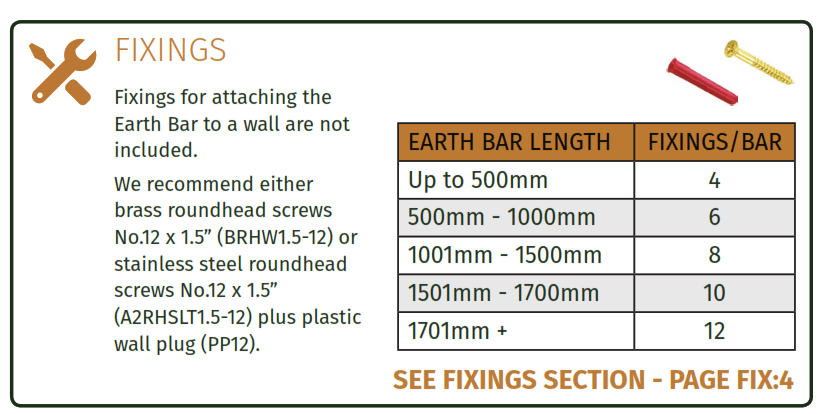

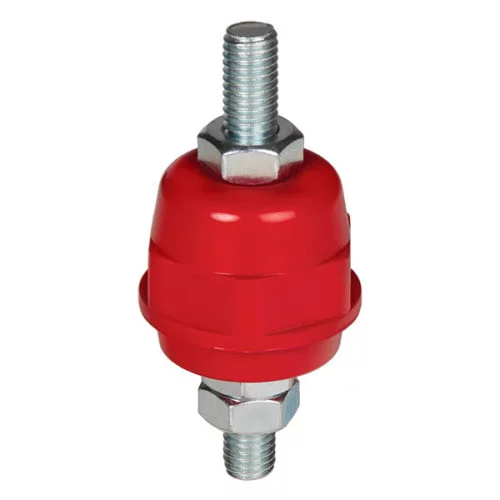

Fixings:
