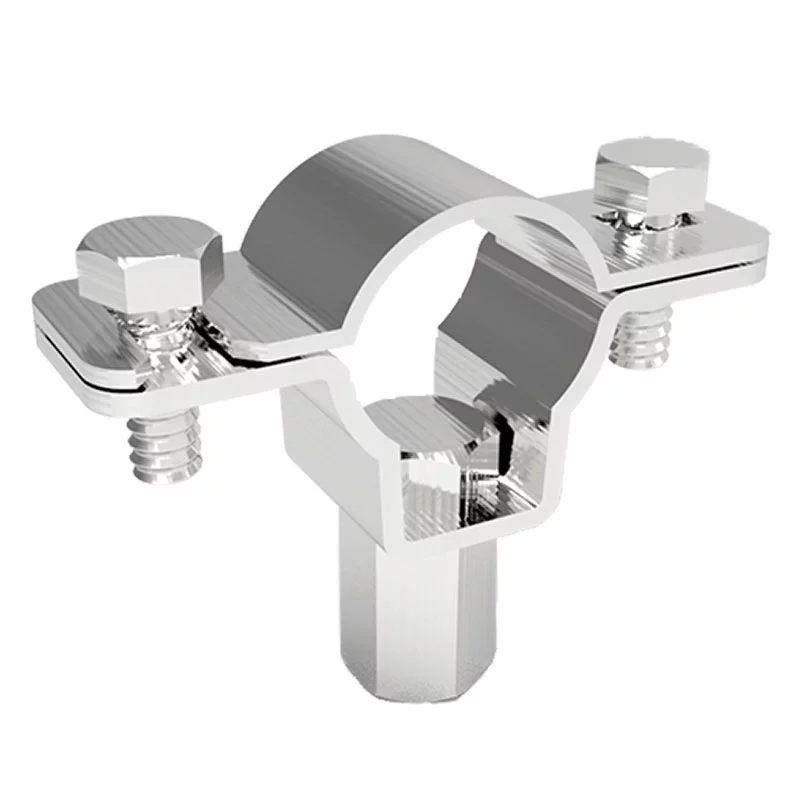

Stainless Steel Insulated Lightning Conductor Holder

Stainless Steel Insulated Lightning Conductor Holder

Download PDF

Product Information:

Corrosion-resistant Stainless Steel Insulated Lightning Conductor Holders are used for fixing an insulated lightning conductor to various surfaces (when used with different adapters).

Features:

Material: Stainless Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

DESCRIPTION
WEIGHT (kg)
PART NO.
Cable Holder
0.04
KM31600105
Cable Holder with M8 Internal Thread Adapter
0.08
KM31600205

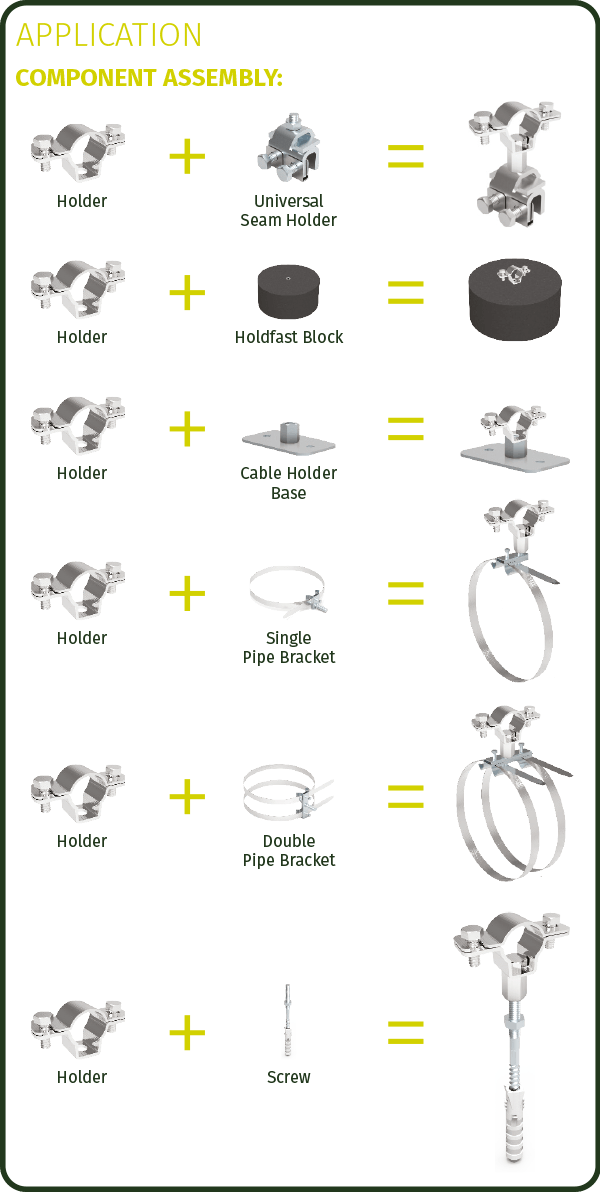

Applications:
