Product Information:

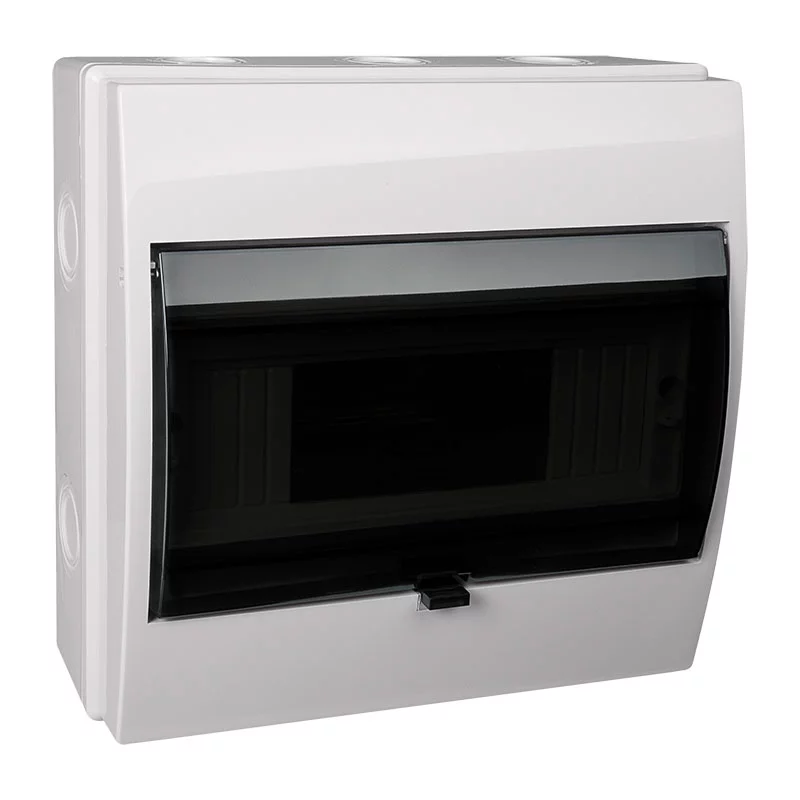

IP65 rated insulated distribution enclosures for use with Kingsmill Surge Protection Devices.

ABS enclosures with a polycarbonate window. Includes DIN rail. Complete with earth and neutral terminal blocks.

Features:

Available: Standard and Large sizes

More Information:

A surge protection device prevents damage to electrical and electronic equipment from transient over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment. In a well -designed system, it is important that for each building, both the incoming and outgoing circuits are protected from lightning by surge protection devices (where the cables enter and exit the building).

This includes:

  • Mains power supplies – including UPS
  • Telephone lines
  • Data communication lines
  • Instrumentation, control, signalling lines
  • Coaxial lines for CCTV, TV, & antenna cables

Field based electronic equipment also need to be protected.

Modules for Enclosures:

SPD-ENC
SPD-ENC-LARGE
25kA Type 1+2
Type 1+2 PV
25kA Type 1+2
KM1+2-25-1+0 SC
KM-FLP-PV550 V/U S
KM1+2-25-3+0 SC
KM1+2-25-1+1 SC
Type 2 PV
KM1+2-25-3+1 SC
KM1+2-25-2+0 SC
KM-SLP-PV170 V/U S
KM1+2-25-4+0 SC
12.5kA Type 1+2
KM-SLP-PV500 V/U S
Type 1+2 PV
KM1+2-12.5-1+0 SC
KM-SLP-PV700 V/Y S
KM-FLP-PV550 V/U S
KM1+2-12.5-1+1 SC
KM-SLP-PV1000 V/Y S
KM-FLP-PV1000 VS/Y
KM1+2-12.5-2+0 SC
KM- SLP-PV1500 V/Y S
KM1+2-12.5-3+0 SC
Type 3 RFI
KM1+2-12.5-3+1 SC
KM-DA-275-DF-16-S
KM1+2-12.5-4+0 SC
Screw Terminals
20kA Type 2
KM-DP-048-V/1-F16

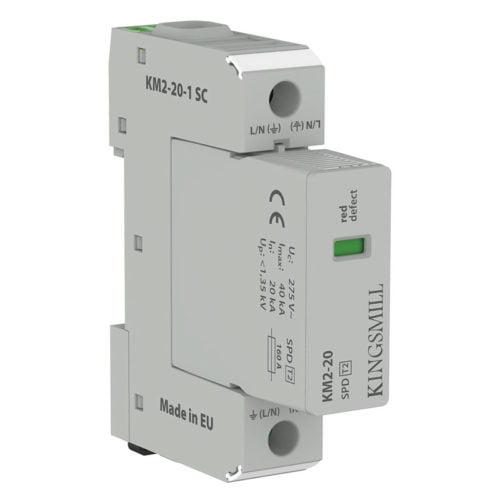

KM2-20-1+0 SC
KM-BDG-230-V/1-FR1
KM2-20-1+1 SC

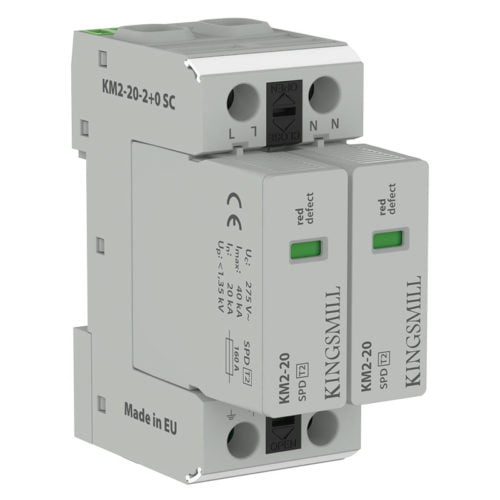

KM2-20-2+0 SC
KM2-20-3+0 SC
KM2-20-3+1 SC
KM2-20-4+0 SC
10kA Type 3
KM3-10-1+1 SC
KM3-10-3+1 SC

Specifications:

ORDER NUMBER
SPD-ENC
SPD-ENC-LARGE
DIN rail length (mm)
70
160
Useable window opening (mm)
70 x 45
7160 x 45
Suitable for maximum product width (mm)
70
160
Height (mm)
215
210
Width (mm)
125
215
Maximum depth (to top of window) (mm)
110
100
Minimum depth (mm)
80
94
Cable knockouts (total all sides)
8
10
Fixing centres (mm)
145 x 52
145 x 143
Weight (kg)
0.51
0.69

Fixings:

Fixings for attaching the enclosure to the wall (not included) – 4 x stainless steel countersunk screws No.12 x 1.5” (A2RHSLT1.5-12) plus plastic plug (PP12).
