Rod to Cable Clamps (Keyhole Type)

Rod to Cable Clamps (Keyhole Type)

SKU: CLUGxxx Category: Tag:
Download PDF

SKU: CLUGxxx Category: Tag:

Product Information:

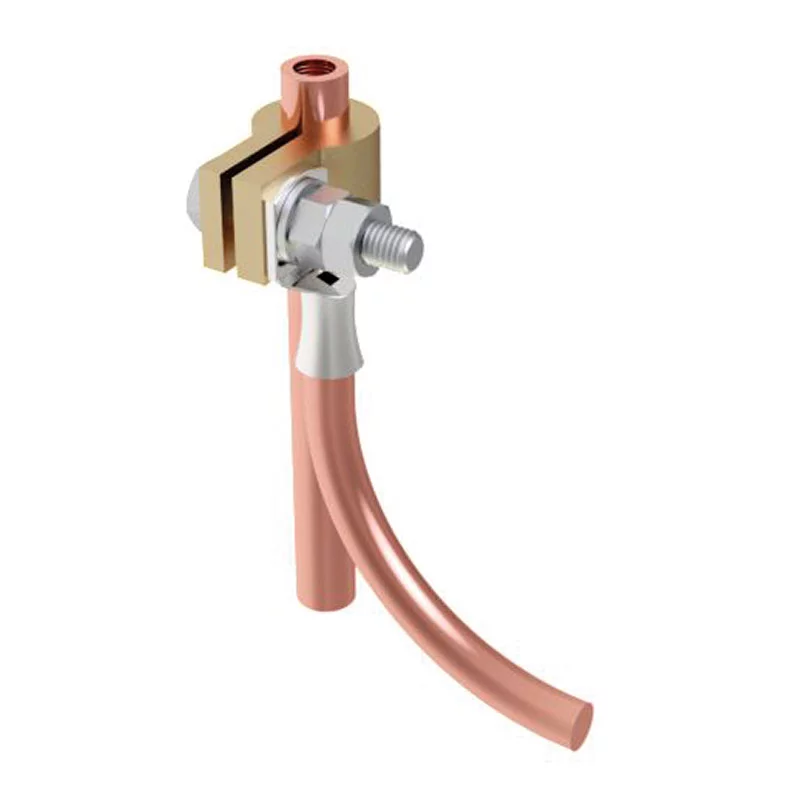

Rod To Cable Clamps (Keyhole Type) is designed to join various sizes of compression lugs to the earth electrode. They have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.

Features:

Material: High Tensile Copper Alloy (body); Stainless Steel or Phosphor Bronze (Bolt)
Standard: BS:EN 62561-1 Class H, BS7430
Tightening torque: 12Nm

More Information:

For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

For Use with Copperbond Rods:

ROD DIAMETER
BOLT MATERIAL
BOLT SIZE
WEIGHT (kg)
PART NO.
9.5mm
Stainless Steel
M08
0.09
CLUG10
5/8" UNC
Stainless Steel
M10
0.22
CLUG16
3/4" UNC
Stainless Steel
M10
0.20
CLUG20
9.5mm
Phosphor Bronze
M08
0.09
CLUG10/PB
5/8" UNC
Phosphor Bronze
M10
0.22
CLUG16/PB
3/4" UNC
Phosphor Bronze
M10
0.20
CLUG20/PB

For Use with Solid Copper Rods

ROD DIAMETER (mm)
BOLT MATERIAL
BOLT SIZE
WEIGHT (kg)
PART NO.
15
Stainless Steel
M10
0.21
CLUG15S
16
Stainless Steel
M10
0.28
CLUG16S
20
Stainless Steel
M10
0.18
CLUG20S
15
Phosphor Bronze
M10
0.21
CLUG15S/PB
16
Phosphor Bronze
M10
0.28
CLUG16S/PB
20
Phosphor Bronze
M10
0.18
CLUG20S/PB
