Type 3 Surge Arrester with RFI Filter

Type 3 Surge Arrester with RFI Filter

SKU: KM-DA-275-DF-16S Category: Tag:

System: TN-C / TN-C-S / TN-S / TT

Nominal Voltage: 230V AC



Download PDF

SKU: KM-DA-275-DF-16S Category: Tag:

Product Information:

Protect low voltage power lines against the impact of surge voltage and RF disturbance. Locate as close as possible to the equipment to be protected. Suitable for charging stations.

Features:

  • Remote signalling
  • Reversible installation
  • Biconnect terminals
  • Locking pluggable modules
  • Optical lifetime status indication

Benefits: No follow through current and no leakage current.

Standards: EN 61643-11:2012, IEC 61643-11:2011 / T3

More Information:

Electic Vehicle Charging Station (EVC) Protection is important as electronic systems are susceptible to damage resulting from lightning activity (direct and indirect). Failure to protect can lead to costly hardware replacement as well as lost revenue.

What to protect?

  • Rectifier for the DC charging output
  • Rectifier for powering the control unit
  • Battery – in case of charging station with energy accumulation
  • Communication between the control unit and the charging connector (eg RS485)
  • Signal from the charging connector (eg temperature measurement)
  • Communication between antenna and control unit (eg Ethernet) for data cable longer than 1 metre

Electrical Specification:

Order number
KM-DA-275-DF-16-S
System
TN-C / TN-C-S / TN-S / TT
Nominal voltageUn
230V AC
Nominal voltageUO
230V/400V AC Ā± 10%
Maximum operating voltageUc
275V AC
Nominal load currentIL
16A
Nominal discharge current (8/20Ī¼s) L-N / N-PEIn
3kA
Nominal discharge current (8/20Ī¼s) L+N-PEIn
5kA
Test voltage L-N / N-PEUoc
6kV
Test voltage L+N-PEUoc
10kV
Voltage protection level mode L-NUp
1.2kV
Voltage protection level mode N-PE/L-PEUp
1.5kV
Short-circuit current ratingIsccr
6kA
Maximum overcurrent protection
16A gL/gG or C 16A
Response time L-Nta
25ns
Response time N-PEta
100ns
Filter attenuation at 1MHz (50Ī©/50Ī©) unsymmetrical
30dB
Cross-section of connected conductors solid/stranded (max)
6mmĀ²
Fault indication
Red indication field
Remote indication
Potential-free change-over contact
Remote indication contacts
250V/0.5A AC, 250V/0.1A DC
Cross-section of remote indication conductors solid/stranded (max)
1.5mmĀ²
Degree of protection
IP20
Range of operating temperatures (min - max)
-40Ā°C - +80Ā°C
Mounting
DIN rail 35mm
According to standard
EN 61643-11:2012, IEC 61643-11:2011 / T3
Weight
175g (nett), 205g (gross)

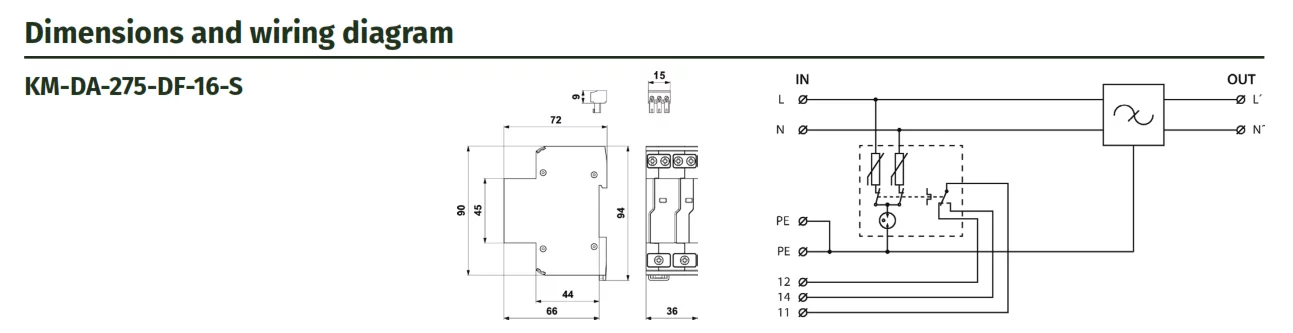

Wiring Diagrams for Type 3 Surge Arrester with RFI Filter:
