Insulators

Insulators

SKU: INSUx Categories: ,
Download PDF

SKU: INSUx Categories: ,

Product Information:

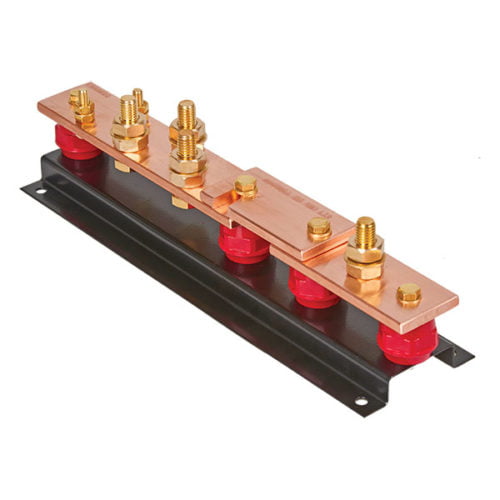

Insulators are commonly used in earth bars to provide mounting and insulation from metallic surfaces.

Features:

Material: Reinforced Polyester/GRP

More Information:

Electrical:

Dielectric Strength:>14 Kv/mm
Resistance (normal):>10M Ohms
Resistance (bolted):>10M Ohms
Arc resistance:>180 sec.
Tracking index:>600

Brass Inserts:

SIZETORQUE
M69Nm
M818Nm
M1035Nm


Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • carry the maximum fault condition for the application/installation.
DESCRIPTION
SIZE (mm)
WEIGHT (kg)
PART NO.
Stand Off Type c/w 2 Studs & 3 Nuts
M10 x 35
0.15
INSU1
Stand Off Type
M10 x 35
0.08
INSU2
Stand Off Type
M6 x 25
0.03
INSU3
Stand Off Type
M10 x 51
0.09
INSU4
