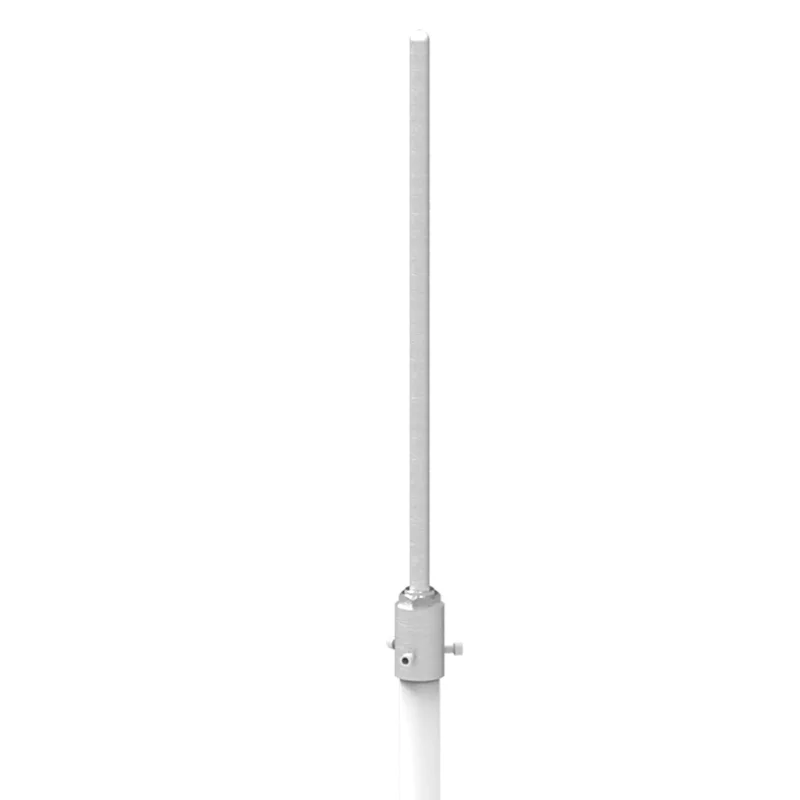

Insulated Lightning Conductor Wall Mounted Interception Mast – 3m to 4m High

Insulated Lightning Conductor Wall Mounted Interception Mast – 3m to 4m High

Download PDF

Product Information:

Insulated Lightning Conductor Wall Mounted Interception Mast comprises the following:

  • 1000mm Aluminium Air Terminal
  • GRP Supporting Mast

Features:

Material:

  • Aluminium Air Terminal
  • GRP Supporting Mast

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

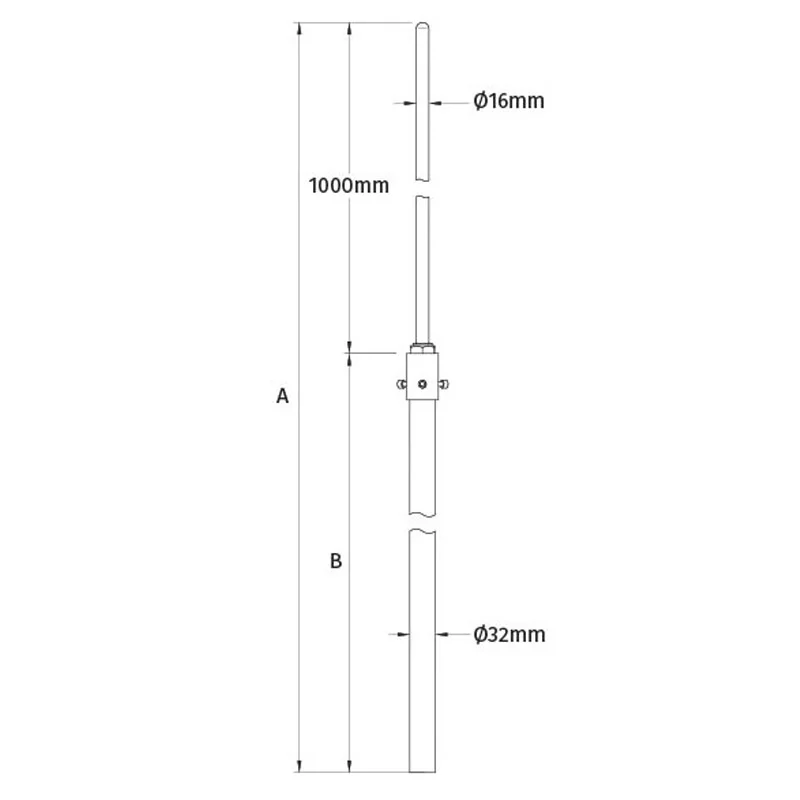

OVERALL HEIGHT (A) (mm)
SUPPORTING MAST HEIGHT (B) (mm)
WEIGHT (kg)
PART NO.
3000
2000
1.60
KM96213005
4000
3000
1.90
KM96214005

Fixings:
