Hinged Base Heavy Duty GRP Air Terminal Masts

Hinged Base Heavy Duty GRP Air Terminal Masts

Download PDF

Product Information:

Flange Base Heavy Duty GRP Air Terminal Masts are suitable for use with M16 threaded Air Terminals. They are white and suitable for use with aluminium or copper Air Terminals of 0.5m and 1.0m heights. Standard Air Terminal height = 0.5m.
Kingsmill brings innovation to lightning protection through the introduction of easy to install Heavy Duty GRP Air Terminal Masts.
Suited to projects using the “protective angle” or “rolling sphere” methods for determining zones of protection.
Flange Base Heavy Duty GRP Air Terminal Masts is suitable for use with 14.2mm diameter Air Terminals. They are white and suitable for use with aluminium or copper Air Terminals of 0.5m and 1.0m heights. Standard Air Terminal height = 0.5m.

Features:

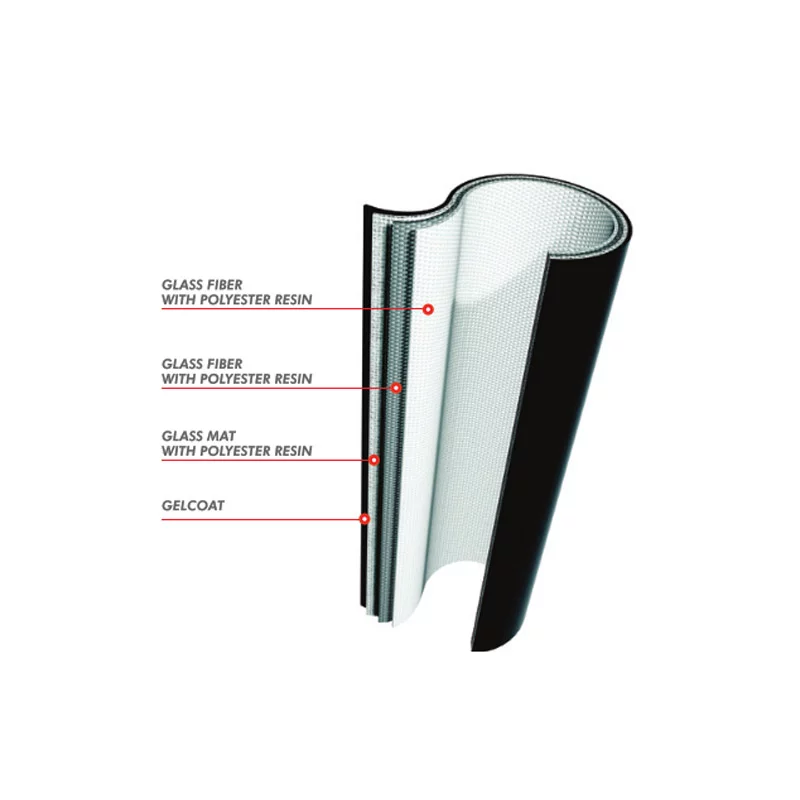

Material: Mast – GRP / Bracket – Galvanised Steel

Conductor fixed inside mast itself

More Information:

Air Terminals and conductors are not included. These must be specified at the time of quotation/order.

Heavy Duty GRP Air Terminal masts are manufactured for applications where resilience to mechanical damage and vandalism is paramount, whilst still maintaining a pleasant aesthetic appearance.

The easy to install, Heavy Duty GRP Air Terminal Masts are suited for projects using the “protective angle” or “rolling sphere” methods for determining zones of protection.

MAST HEIGHT (Excluding Air Terminal) (mm)
MAST DIA (mm)
WEIGHT (kg)
PART NO.
1000
65
6.92
KMFBHDATM10
2000
65
8.84
KMFBHDATM20
3000
65
10.76
KMFBHDATM30
4000
65
12.68
KMFBHDATM40
5000
65
14.60
KMFBHDATM50

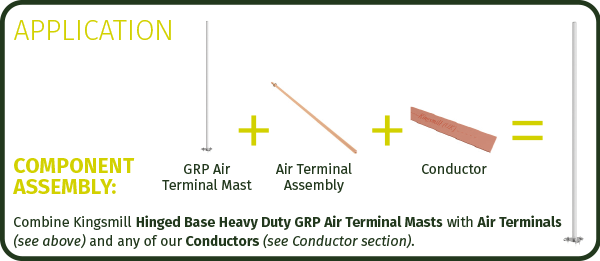

Application:
