Earth Bars with Single Disconnecting Link

Earth Bars with Single Disconnecting Link

SKU: EBARxxx-1 Categories: ,
Download PDF

SKU: EBARxxx-1 Categories: ,

Product Information:

Earth Bars with a Single Disconnecting Link are supplied with a powder-coated base and M10 connections as standard.

Available in copper or tinned.
Brass bolts are provided as standard for plain copper bars. Stainless steel bolts are provided as standard for tinned copper bars.
For phosphor bronze add /PB suffix to the part numbers above.
Other sizes are available on request.

Features:

Material: Copper (bar), Powder-coated steel (base)
Standard: BS 7430

More Information:

The Single Disconnecting Link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of an Earth Rod/system while disconnecting it from the Lightning Protection and Earthing system.

Standard Earth Bars meet the requirements of most applications. However, we can design and manufacture an Earth Bar to suit special applications. Send your specification to us and we will design a bespoke Earth Bar. This design is checked and confirmed by you before work commences.

Our standard Earth Bar Bases feature pre-drilled fixing holes for ease of installation and can be supplied powder-coated to reduce the risk of corrosion. All Earth Bars are manufactured in our dedicated UK factory with a high level of quality control that ensures consistency.

Earth Bars with Single Disconnecting Link:

DESCRIPTION
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
4 Way Earth Bar with Single Disconnecting Link
375 x 100 x 90
2.12
EBAR4-1
6 Way Earth Bar with Single Disconnecting Link
475 x 100 x 90
2.58
EBAR6-1
8 Way Earth Bar with Single Disconnecting Link
575 x 100 x 90
3.12
EBAR8-1
10 Way Earth Bar with Single Disconnecting Link
725 x 100 x 90
3.88
EBAR10-1
12 Way Earth Bar with Single Disconnecting Link
825 x 100 x 90
4.34
EBAR12-1
14 Way Earth Bar with Single Disconnecting Link
925 x 100 x 90
4.74
EBAR14-1
16 Way Earth Bar with Single Disconnecting Link
1025 x 100 x 90
5.18
EBAR16-1
18 Way Earth Bar with Single Disconnecting Link
1125 x 100 x 90
5.58
EBAR18-1
20 Way Earth Bar with Single Disconnecting Link
1275 x 100 x 90
5.71
EBAR20-1
22 Way Earth Bar with Single Disconnecting Link
1375 x 100 x 90
6.65
EBAR22-1
24 Way Earth Bar with Single Disconnecting Link
1475 x 100 x 90
7.46
EBAR24-1
26 Way Earth Bar with Single Disconnecting Link
1575 x 100 x 90
8.00
EBAR26-1
28 Way Earth Bar with Single Disconnecting Link
1675 x 100 x 90
8.51
EBAR28-1
30 Way Earth Bar with Single Disconnecting Link
1775 x 100 x 90
8.90
EBAR30-1

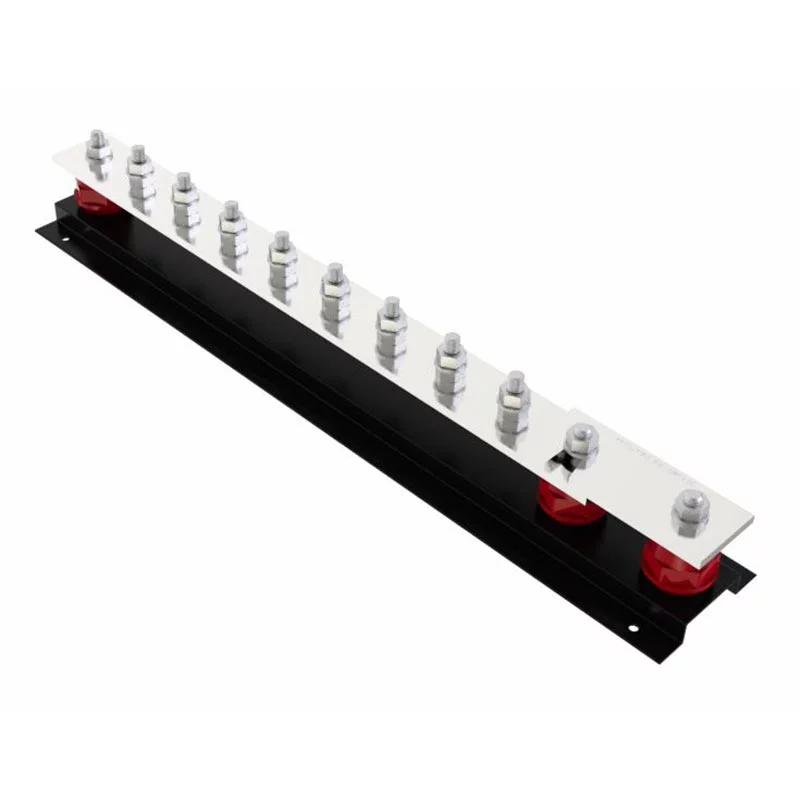

Tinned Earth Bars with Single Disconnecting Link:

DESCRIPTION
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
4 Way Tinned Earth Bar with Single Disconnecting Link
375 x 100 x 90
2.12
EBAR4-1-T
6 Way Tinned Earth Bar with Single Disconnecting Link
475 x 100 x 90
2.58
EBAR6-1-T
8 Way Tinned Earth Bar with Single Disconnecting Link
575 x 100 x 90
3.12
EBAR8-1-T
10 Way Tinned Earth Bar with Single Disconnecting Link
725 x 100 x 90
3.88
EBAR10-1-T
12 Way Tinned Earth Bar with Single Disconnecting Link
825 x 100 x 90
4.34
EBAR12-1-T
14 Way Tinned Earth Bar with Single Disconnecting Link
925 x 100 x 90
4.74
EBAR14-1-T
16 Way Tinned Earth Bar with Single Disconnecting Link
1025 x 100 x 90
5.18
EBAR16-1-T
18 Way Tinned Earth Bar with Single Disconnecting Link
1125 x 100 x 90
5.58
EBAR18-1-T
20 Way Tinned Earth Bar with Single Disconnecting Link
1275 x 100 x 90
5.71
EBAR20-1-T
22 Way Tinned Earth Bar with Single Disconnecting Link
1375 x 100 x 90
6.65
EBAR22-1-T
24 Way Tinned Earth Bar with Single Disconnecting Link
1475 x 100 x 90
7.46
EBAR24-1-T
26 Way Tinned Earth Bar with Single Disconnecting Link
1575 x 100 x 90
8.00
EBAR26-1-T
28 Way Tinned Earth Bar with Single Disconnecting Link
1675 x 100 x 90
8.51
EBAR28-1-T
30 Way Tinned Earth Bar with Single Disconnecting Link
1775 x 100 x 90
8.90
EBAR30-1-T
