PVC Covered Aluminium Tape

PVC Covered Aluminium Tape

SKU: TAxxx Category: Tag:
Download PDF

SKU: TAxxx Category: Tag:

Product Information:

Kingsmill offers UV-stabilised PVC Covered Aluminium Tape in a range of colours. Colours match the most common structural materials and will reduce the visual impact of a Lightning Protection conductor.

Features:

Material: Aluminium, PVC
Standard: BS:EN 755-5
PVC Colour: BS 5252 (green to BS 6746C)

More Information:

PVC covering of aluminium down conductor provides an aesthetically pleasing product and it also protects the product from corrosion.

Sold in the specified coil lengths only.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

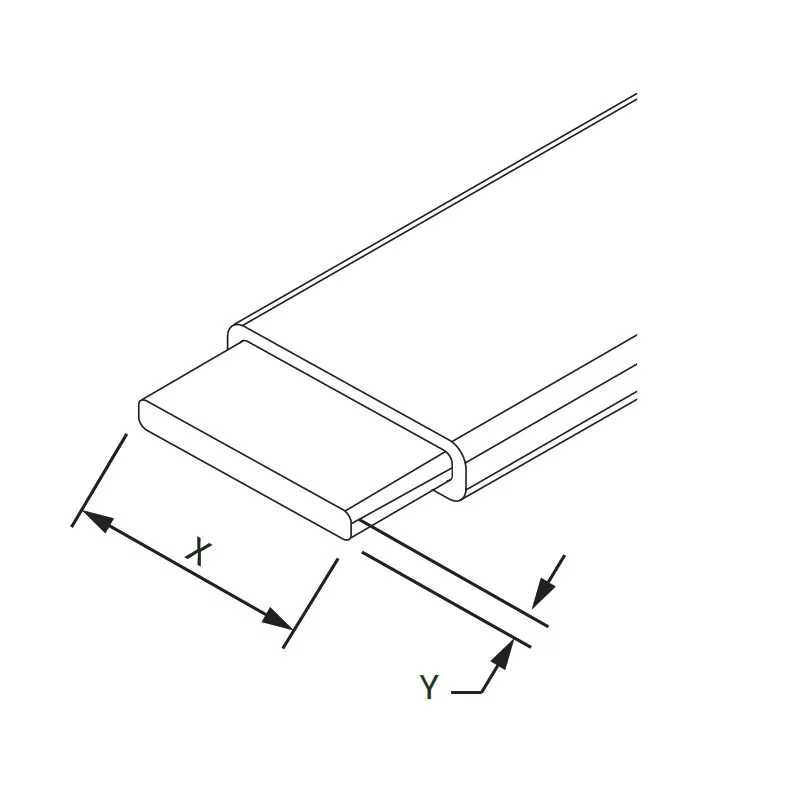

CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
COLOUR (to BS 5252*)
COIL SIZE (m)
WEIGHT (kg/m)
PART NO.
12.5 x 1.5
18.75
Black18B29*
50
0.09
TABL1215
20 x 3
60
Black18B29*
50
0.25
TABL2030
25 x 3
75
Black18B29*
50
0.31
TABL253
25 x 3
75
Brown06C39*
50
0.31
TABN253
25 x 3
75
GreenBS 6746C
50
0.31
TAGN253
25 x 3
75
Grey00A07*
50
0.31
TAGY253
25 x 3
75
Stone08B23*
50
0.31
TAST253
25 x 3
75
White10B15*
50
0.31
TAWH253
25 x 3
75
Dark Grey
50
0.31
TADG253
