Air Terminal Bases

Air Terminal Bases

Download PDF

Product Information:

Air Terminal Bases are designed to be used with Kingsmill Air Terminals and Elevation Rods as part of a traditional lightning protection system.

Features:

Material: Copper/Aluminium
Standard: BS:EN 62561-1, Class H

More Information:

Used in the installation of Conventional Air Terminals.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

Kingsmill Air Terminals are used by the designer to solve protection problems for equipment such as cameras, roof-mounted plants, etc.

Air Terminals

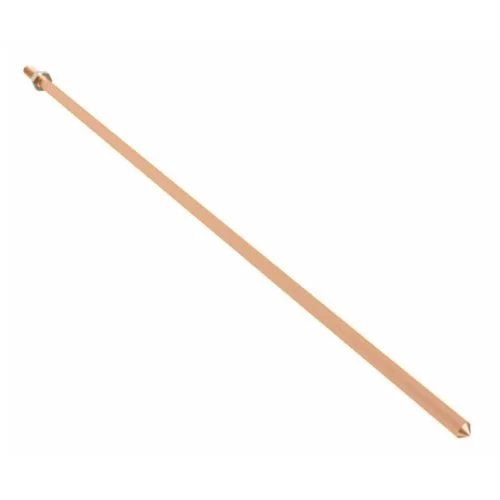

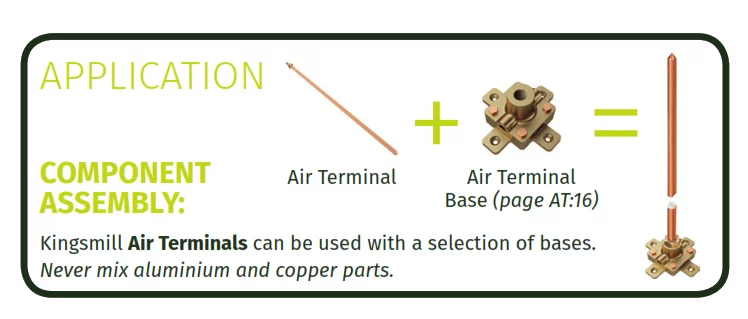

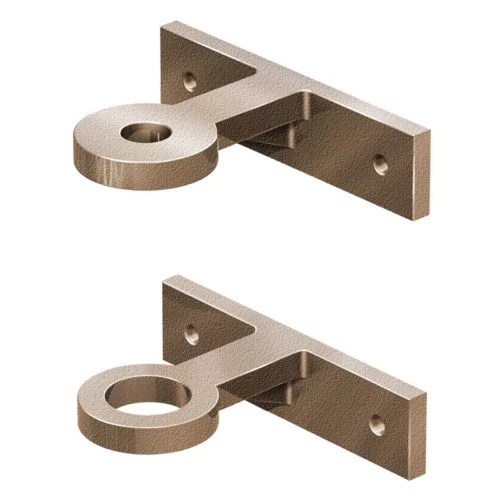

Kingsmill Copper Air Terminals are designed to be used with either the standard Air Terminal Base, Multi-Purpose Base, or the Side Mounted Brackets. Threads are rolled for high strength.

Kingsmill Aluminium Air Terminals are designed to be used with either the standard Air Terminal Base, Multi-Purpose Base, or the Side Mounted Brackets. Threads are cut.

Elevation Rods

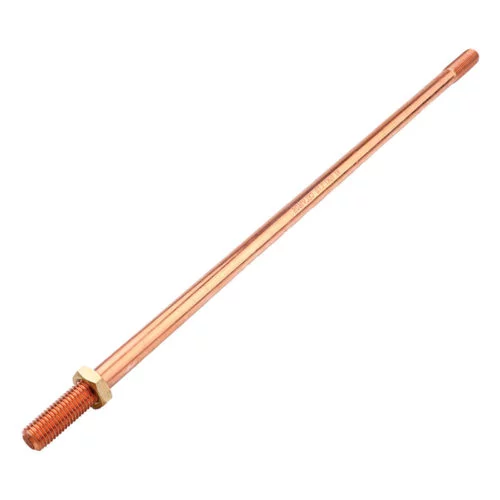

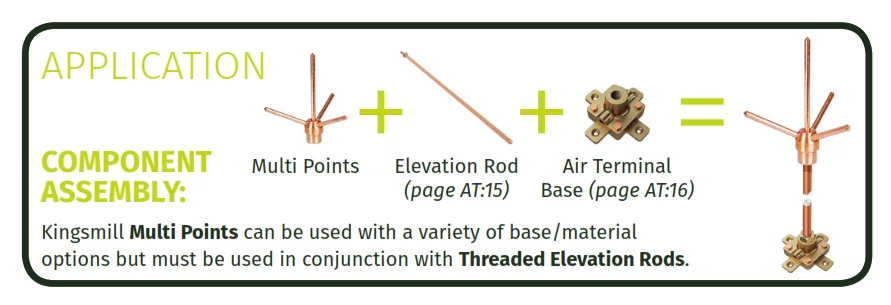

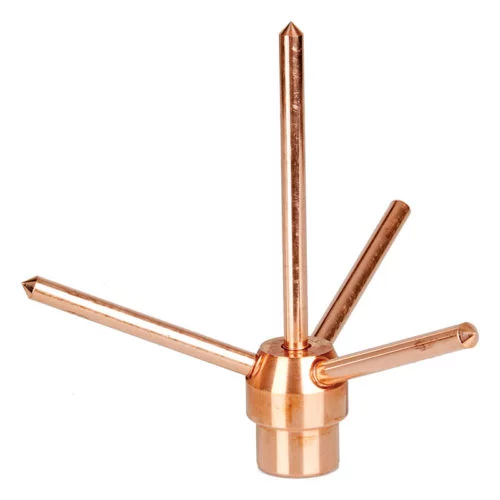

Kingsmill Copper Elevation Rods are designed to be used with either the standard Air Terminal Base, Multi-Purpose Base, or the Side Mounted Brackets and Multi-Point Air Terminal. Threads are rolled for high strength.

Kingsmill Aluminium Elevation Rods are designed to be used with either the standard Air Terminal Base, Multi-Purpose Base, or the Side Mounted Brackets and Multi-Point Air Terminal. Threads are cut.

THREAD DIA (mm)
CONDUCTOR SIZE (mm)
MATERIAL
WEIGHT (kg)
PART NO.
16
25
Copper
0.50
CATB16
16
25
Aluminium
0.17
AATB16
10
8 or 25 x 3
Aluminium
0.15
AATB10
16
31 x 6
Copper
0.50
CATB316
16
50mm²
Copper
0.80
CATB50
16
70mm²
Copper
0.75
CATB70
16
95mm²
Copper
0.90
CATB95

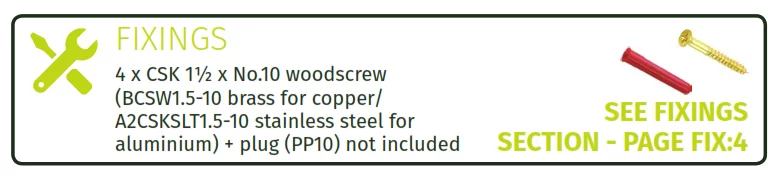

Fixings:

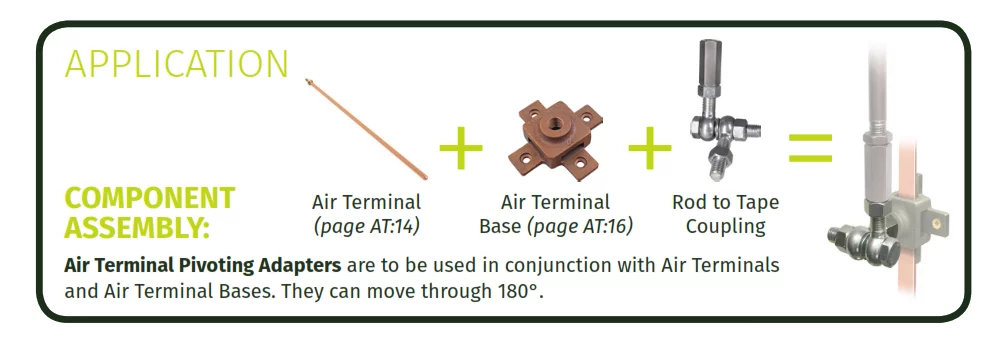

Applications:
